VALTEC Boiler safety group 3/4"
Article: VT.461.NC.05

VALTEC Boiler safety group 3/4"

https://www.e-delivery.ae/web/image/product.template/13552/image_1920?unique=f9f6b55
(0 review)

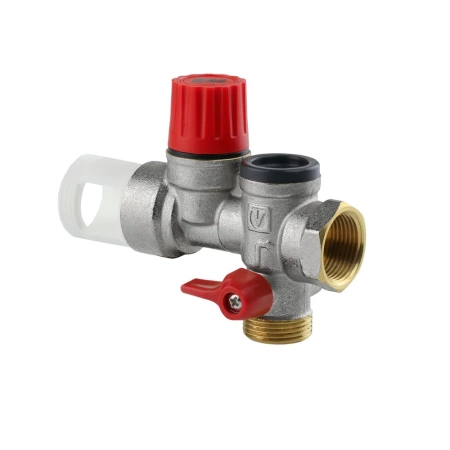

VALTEC VT.461.NC.05 — Safety Group for Water Heater — ¾", 7 bar

Nickel-plated brass safety group for storage water heaters. Protects against overpressure caused by thermal expansion or cold water supply surges. Includes ball valve, spring-loaded check valve, and high-capacity relief valve with manual release. Features anti-siphon funnel and rotatable plastic drain outlet. Compatible with dry or combined water traps.

  • 🔧 Connection: Inlet thread ¾"

  • 📏 Pressure setting: 7 bar

  • 💠 Material: CW617N brass, nickel-plated

  • 🔩 Components: Ball valve, check valve, relief valve

  • 🔁 Drain outlet: Rotatable plastic with anti-siphon funnel

  • 📐 Mounting: Vertical or horizontal

  • 💧 Media: Potable water

  • 🛠️ Function: Overpressure protection, manual draining

  • ⚙️ Extras: ¼" gauge port (plugged), siphon connection optional




VALTEC VT.461.NC.05 — Группа безопасности бойлера — ¾", 7 бар

Никелированная латунная группа безопасности для емкостных водонагревателей. Защищает от превышения давления при нагреве воды или скачках давления в холодной магистрали. Включает шаровой кран, пружинный обратный клапан и предохранительный клапан с ручным сбросом. Оснащена воронкой разрыва струи и поворотным пластиковым сливным патрубком. Совместима с сухим или совмещённым гидрозатвором.

  • 🔧 Подключение: Резьба входа ¾"

  • 📏 Давление срабатывания: 7 бар

  • 💠 Материал: Латунь CW617N, никелированная

  • 🔩 Состав: Шаровой кран, обратный клапан, предохранительный клапан

  • 🔁 Слив: Поворотный пластиковый патрубок с воронкой

  • 📐 Монтаж: Вертикальный или горизонтальный

  • 💧 Среда: Питьевая вода

  • 🛠️ Назначение: Защита от давления, ручной слив

  • ⚙️ Дополнительно: Порт под манометр ¼" (заглушен), опция подключения сифона
