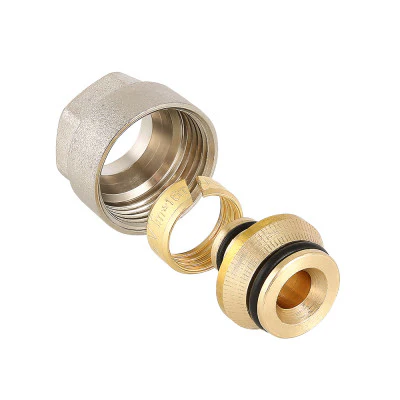

VALTEC Eurconus fitting for multilayer pipe

Brass compression fitting for connecting 16×2.0 mm multilayer or PEX pipes to ¾″ Eurocone threaded outlets (e.g. manifolds, valves). Includes union nut, compression ring, and double O-rings. No additional sealants required. Designed for potable water, heating, and compressed air systems.

• 🔧 Connection: Pipe × Male thread (Eurocone ¾″)

• 📏 Pipe size: 16 mm × 2.0 mm

• 💠 Material: CW617N brass, nickel-plated

• 🔩 Sealing: 2 × EPDM O-rings + compression ring

• 🔧 Thread type: Eurocone standard ¾″

• 🧰 Installation: Manual tightening (max 20 N·m)

• 💧 Media: Water, glycol solutions (≤50%), compressed air

• 🔥 Temperature: −20°C to +110°C (short-term up to +130°C)

• 🛠️ Pressure: Up to 10 bar

• 🕒 Service life: Up to 50 years
