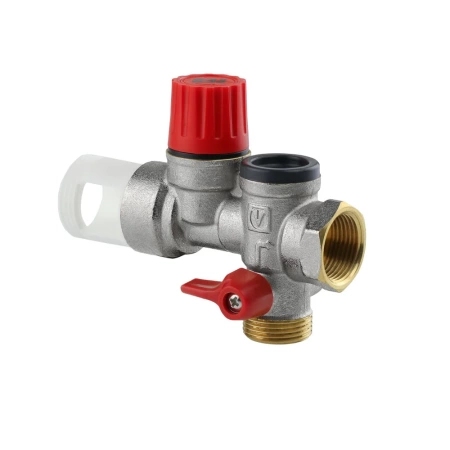

VALTEC Boiler safety group 3/4"

Nickel-plated brass safety group for storage water heaters. Protects against overpressure caused by thermal expansion or cold water supply surges. Includes ball valve, spring-loaded check valve, and high-capacity relief valve with manual release. Features anti-siphon funnel and rotatable plastic drain outlet. Compatible with dry or combined water traps.

• 🔧 Connection: Inlet thread ¾"

• 📏 Pressure setting: 7 bar

• 💠 Material: CW617N brass, nickel-plated

• 🔩 Components: Ball valve, check valve, relief valve

• 🔁 Drain outlet: Rotatable plastic with anti-siphon funnel

• 📐 Mounting: Vertical or horizontal

• 💧 Media: Potable water

• 🛠️ Function: Overpressure protection, manual draining

• ⚙️ Extras: ¼" gauge port (plugged), siphon connection optional
