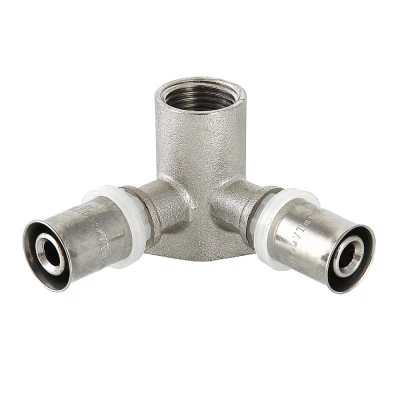

VALTEC Double Brass Press Wall Plate Elbow, 16 mm × 1/2" Female Thread

Nickel-plated brass press elbow with mounting flange for connecting multilayer or PEX pipes to threaded components in wall installations. One end with press sleeve, the other with female thread (ISO 228). Stainless steel sleeve, EPDM seals, and nylon insert ensure tightness and corrosion resistance. TH-profile press tool required.

• 🔧 Connection: Press × Female thread

• 📏 Size: 16 mm × ½″

• 💠 Material: CW617N brass, nickel-plated

• 🔩 Seal: EPDM rings + nylon dielectric insert

• 📐 Press profile: TH

• 🔧 Thread type: Cylindrical (ISO 228)

• 🧱 Mounting: Wall plate with holes

• 🔥 Max temperature: +110°C

• 💧 Media: Potable water, heating fluids

• 🛠️ Pressure: Up to 25 bar

• 🕒 Service life: Up to 50 years
