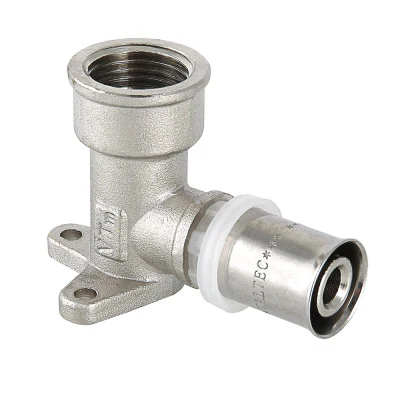

VALTEC Female Wall Plate Elbow 16 × 1/2"

Nickel-plated brass press elbow with mounting flange for connecting multilayer or PEX pipes (16×2.0 mm) to threaded components. Extended body (+6.5 mm) allows installation behind thick tile or leveling layers. Female thread (ISO 228), TH-profile press sleeve, and bolt holes for secure wall mounting.

• 🔧 Connection: Press × Female thread

• 📏 Size: 16 mm × ½″

• 📐 Press profile: TH

• 💠 Material: CW617N brass, nickel-plated

• 🔩 Thread type: Cylindrical (ISO 228)

• 🧱 Mounting: Wall plate with bolt holes

• 📏 Extension: +6.5 mm vs standard model

• 💧 Media: Potable water, heating fluids

• 🔥 Max temperature: +110°C

• 🕒 Service life: Up to 50 years
