Article: VTr.098.N.0005

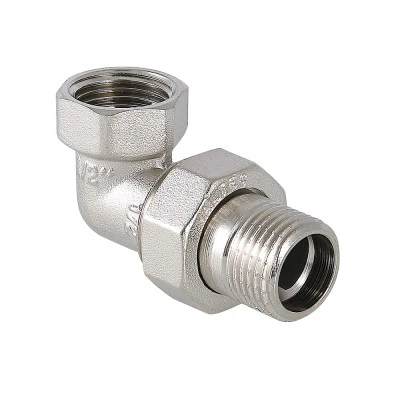

VALTEC Threaded Fitting: 3 Piece elbow with coupling nut 3/4"
Category:
VALTEC VTr.098.N.0005 — Brass Union Elbow Fitting 90° with Nut — ¾" (F×M)
Nickel-plated brass union elbow fitting with female-to-male thread and union nut (American-style). Designed for detachable 90° connections in steel, copper, polymer, and multilayer piping systems. Features EPDM sealing ring and ISO 228 cylindrical threads with serrations for sealant grip. Max tightening torque: 30 N·m.
🔧 Connection: Female × Male thread with union nut
📏 Size: ¾"
💠 Material: CW617N brass, nickel-plated
🔩 Seal: EPDM ring + union nut
- 📐 Thread standard: ISO 228 (G), compatible with ISO R7
- 🔥 Max temperature: +120°C
- 💧 Media: Water, air, neutral fluids
- 🛠️ Pressure: Up to 40 bar
- ⚙️ Torque limit: 30 N·m
